HDMI / Video / Audio Extenders

Application: Allows digital signals to be transmitted using a single Cat5e or Cat6 cable

• Transmission Range: Up to 330 ft (100 meters)
• Accepts Digital Coax or Optical Toslink
• Supports Digital 5.1 (DTS, Dolby Digital, etc.)
• High performance, zero signal loss
• Data Transmission Rate: 12.8 Mb/s
• S/PDIF (Digital Coax): 96 kHz performance
• Power Supply: 12V DC, transmitter side
• Dimensions: 2.75” W x 1.25” H x 2.5” D

Package Contents:

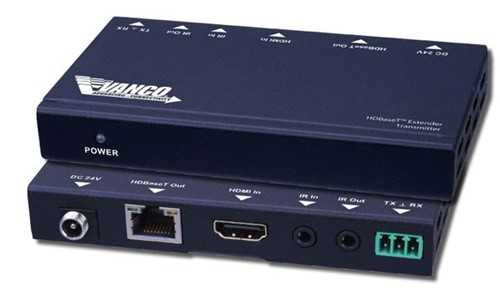

HDBaseT Extender Set
2 Wideband IR Tx
2 Wideband IR Rx
1 DC 24V1A power supply
4 Mounting ears
User Manual

Allows HDMI audio/video signals to be transmitted using two Cat 5e or Cat6 cables

• Extends your HDTV display up to 100 feet away from your HDTV source using two (2) Category 5e/6 cables
• Audio and video signals are transmitted digitally over the Category 5e/6 cable for zero signal loss
• Slim compact design includes an attached HDMI cable on transmitter and receiver which saves money and setup time
• Supports High Definition Resolution 1080p
• H.D.C.P. (High-Bandwidth Digital Content Protection) Compliant
• No power supply required - Requires Source that
  Provides 5V DC HDMI Signal
• Not recommended for cascading purposes or to work with any other component, to be used as a source to display extender only

• Allows HDMI Audio/Video Signals to be transmitted over Dual Cat5e/Cat6 Cables
• Transmission Range: Extends 1080p resolutions up to 164 ft over Cat5e Cables; Extends 1080p resolutions up to 180 ft over Cat6 Cables
• High Speed Chip Set that Supports 3D, FullHD 1080p
• HDCP Compliant
• Super IR control system, IR transport channel can be forward or backward. IR transmitters and receivers are needed (Part #s 280720, 280721)
• Supports Digital Audio Format, DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
• Unique Circuit Design Allows for Protection against High Voltage and Peak Currents
• Tested for Compatibility with all leading HD Video brands
• Tested with 7.1 Home Theater Systems
• Shelf or Wall Mountable
• 5V DC, UL Listed Power Supply for Receiver
• Dimensions: 1.25”W x .875”H x 3.25”D

• Allows HDMI audio/video and control to be transmitted up to 164 ft/ 50m using a single Cat5e or Cat6 cable
• Features HDMI Loop-out port on the transmitter to split of cascade audio and video signals for additional displays
• IR pass-through control from the receiver to the transmitter with the provided IR cables
• Full HD support of 1080p @60Hz
• Compatible with Dolby, DTS and PCM audio formats
• EQ settings on the receiver allows for easy adjustment based on cabeling distance
• EDID settings on the transmitter allow for EDID to be managed through either the HDMi Loop-out of the HDMI output of the receiver for an easy and cost effective solution
• HDCP Compliant
• Power supplies: (2) 5V DC
• Dimensions: 3.3”W x .6” H x 2.6” D

Package Contents:

HDMI Extender Set
1 Wideband IR Tx
1 Wideband IR Rx
2 DC 5V1A power supply
1 User Manual

• Allows VGA and Audio Signals to be Transmitted
  using one Cat5e or Cat6 cable
• Transmission Range up to 500 ft.
• Built-in equalizer for signal boosting
• Supports computer resolutions UXGA
  (1600x1200) SXGA (1280x1024), XGA
  (1024x768), SVGA (800x600) and VGA
  (640x480)
• Supports up to 60 meters (198 ft) with
  resolution 1600x1200
• Supports up to 80 meters (264 ft) with
  resolution 1280x1024
• Supports up to 100 meters (330 ft) with
  resolution 1024x768
• Supports up to 120 meters (396 ft) with
  resolution 800x600
• Supports up to 150 meters (500 ft) with
  resolution 640x480
• Power Supply: (2) 5V DC, UL Listed
• Dimensions: 2.88” W x 1”H x 2”D
