Products

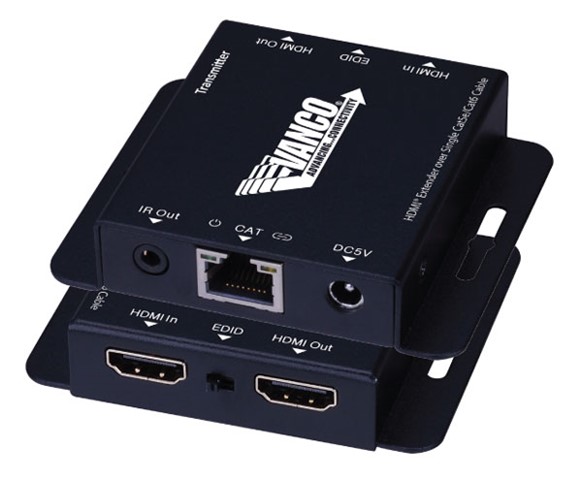

• Allows HDMI audio/video and control to be transmitted up to 164 ft/ 50m using a single Cat5e or Cat6 cable
• Features HDMI Loop-out port on the transmitter to split of cascade audio and video signals for additional displays
• IR pass-through control from the receiver to the transmitter with the provided IR cables
• Full HD support of 1080p @60Hz
• Compatible with Dolby, DTS and PCM audio formats
• EQ settings on the receiver allows for easy adjustment based on cabeling distance
• EDID settings on the transmitter allow for EDID to be managed through either the HDMi Loop-out of the HDMI output of the receiver for an easy and cost effective solution
• HDCP Compliant
• Power supplies: (2) 5V DC
• Dimensions: 3.3”W x .6” H x 2.6” D

Package Contents:

HDMI Extender Set
1 Wideband IR Tx
1 Wideband IR Rx
2 DC 5V1A power supply
1 User Manual

• IR Receive Frequency: 34 kHz to 60 kHz
• IR Transmit Frequencies: 38 kHz & 56 kHz
• Range: 40 ft at 38 kHz & 25 ft at 56 kHz
• Dimensions: 2.75"W x 4.5"H x 1.6"D

• Ideal for installation in areas illuminated by compact fluorescent lighting (CFL)
• 10 ft pigtail with 3.5 mm plug
• IR Receive Frequency: 34 kHz to 60 kHz
• IR Transmit Frequencies: 38 kHz & 56 kHz
• Range: 40 ft at 38 kHz & 25 ft at 56 kHz
• Dimensions: 0.96"L x 0.65"OD
• Cord Length: 10 ft
• Brass Finish

• IR Receive Frequency: 34 kHz to 60 kHz
• IR Transmit Frequencies: 38 kHz & 56 kHz
• Range: 40 ft at 38 kHz & 25 ft at 56 kHz

• Compatible with Keystone Face Plates
• Can be connected with the use of 18 AWG 2 or 4 Conductor
  Low Voltage Wire or Cat5e/Cat6 Cable
• IR Receive Frequency: 34 kHz to 60 kHz
• IR Transmit Frequencies: 38 kHz & 56 kHz
• Range: 40 ft at 38 kHz & 25 ft at 56 kHz
• Dimensions: 1.55"L x .75"W x 1"H

• Allows for the Transmission of IR Signals from up to 6 IR Emitters to one IR Receiver
• IR Receiver works in most lighting environments, including CFL
• Kit includes (1) Connecting Block, (1) Mini IR Receiver, (2) Single IR Emitters and (1) 12 VDC Power Supply
• A total of 6 IR Emitters can be supported
• IR Receive Frequency: 34 kHz to 60 kHz
• IR Transmit Frequencies: 38 kHz & 56 kHz
• Range: 40 ft at 38 kHz & 25 ft at 56 kHz
• Power Supply, 12 VDC, 3 milli-amps
• Connecting Block Dimensions: 2.36"W x 1"H x 3.22"D

• Allows for the Transmission of IR signals from up to 3 IR Emitters to one IR Receiver
• In-Wall IR Receiver works in most lighting environments, including CFL
• Kit includes (1) In-Wall IR Connecting Block, (1) In-Wall IR Receiver, (2) Single IR Emitters and (1) 12 VDC Power
  Supply
• A total of 6 IR Emitters can be supported
• Requires 18 AWG 4 Conductor Low Voltage Wire (Not Included)
• IR Receive Frequency: 34 kHz to 60 kHz
• IR Transmit Frequencies: 38 kHz & 56 kHz
• Range: 40 ft at 38 kHz & 25 ft at 56 kHz
• Power Supply, 12 VDC, 3 milli-amps
• In-Wall Connecting Block Dimensions: 2.75"W x 4.5"H x 1.6"D

• Allows for the Transmission of IR signals from up to 2 IR Emitters to one IR Receiver
• In-Wall IR Receiver works in most lighting environments, including CFL
• Kit includes (1) I IR Connecting Block, (1) IR Receiver, (2) Single IR Emitters and (1) 12 VDC Power Supply
• A total of 2 IR Emitters can be supported
• IR Receive Frequency: 34 kHz to 60 kHz
• IR Transmit Frequencies: 38 kHz & 56 kHz
• Range: 40 ft at 38 kHz & 25 ft at 56 kHz
• Power Supply, 12 VDC, 3 milli-amps
• IR Connecting Block: 1"W x .75"H x 1.75"D

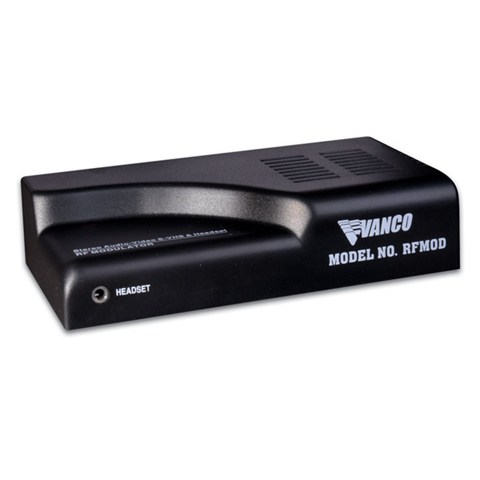

• Allows TVs without Audio/Video RCA Inputs to View
  DVD Players on the TV’s Coaxial Cable Input
• Include 4 Pin S-Video Jack and Earphone Outlet
• Attractive Clamshell Packaging
• UL Listed
